Implementing tail distributions

Implementing tail distributions#

This notebook outlines the API for TailDist objects in the empiricaldist library.

A TailDist represents the tail distribution P(X ≥ x). It is similar to a survival function, but a Surv object represents P(X > x). The difference matters when a distribution has point masses, as empirical distributions often do.

Click here to run this notebook on Colab.

try:
    import empiricaldist
except ImportError:
    !pip install empiricaldist

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

import inspect

def psource(obj):
    """Prints the source code for a given object.

    obj: function or method object
    """
    print(inspect.getsource(obj))

Tail vs survival#

For a discrete distribution with sorted support qᵢ:

  • Tail: T(qᵢ) = P(X ≥ qᵢ)

  • Survival: S(qᵢ) = P(X > qᵢ)

At each support point, T(x) = S(x) + P(X = x). Equivalently, S(qᵢ) = T(qᵢ₊₁), with S at the last support point equal to 0.

We’ll use this sequence as a running example:

t = [1, 2, 2, 3, 5]

from empiricaldist import Pmf, Surv, TailDist

pmf = Pmf.from_seq(t)
surv = Surv.from_seq(t)
tail = TailDist.from_seq(t)

The PMF gives the probability of each quantity:

pmf
probs
1 0.2
2 0.4
3 0.2
5 0.2

The survival function gives P(X > x):

surv
probs
1 0.8
2 0.4
3 0.2
5 0.0

The tail distribution gives P(X ≥ x):

tail
probs
1 1.0
2 0.8
3 0.4
5 0.2

Notice that the tail at each support point includes the point mass at that quantity. For example, P(X ≥ 5) = 0.2 because all of the probability at 5 is included.

Constructor#

The TailDist class inherits its constructor from pd.Series.

You can build a tail distribution from a PMF by adding the survival function and the PMF, then wrapping the result in a TailDist:

ps = pmf.make_surv() + pmf
tail2 = TailDist(ps)
tail2.normalize()
tail2.iloc[0] = 1.0
tail2
probs
1 1.0
2 0.8
3 0.4
5 0.2

Or use from_seq, which does this for you:

psource(TailDist.from_seq)

    @staticmethod
    def from_seq(seq, normalize=True, sort=True, **kwargs):
        """Make a TailDist from a sequence of values.

        Args:
            seq: iterable
            normalize: whether to normalize the TailDist, default True
            sort: whether to sort quantities, default True
            kwargs: passed to the TailDist constructor

        Returns: TailDist
        """
        pmf = Pmf.from_seq(seq, normalize=False, sort=sort, **kwargs)
        return pmf.make_tail(normalize=normalize)

tail = TailDist.from_seq(t)
tail
probs
1 1.0
2 0.8
3 0.4
5 0.2

Other distribution classes provide make_tail, which returns the same result:

psource(Pmf.make_tail)

    def make_tail(self, **kwargs):
        """Make a TailDist from the Pmf.

        Args:
            kwargs: passed to the TailDist constructor

        Returns: TailDist
        """
        normalize = kwargs.pop("normalize", False)
        ps = self.make_surv() + self
        tail = TailDist(ps, **kwargs)
        tail.attrs["total"] = ps.iloc[0]
        if normalize:
            tail.normalize()
            tail.iloc[0] = 1.0
        return tail

pmf.make_tail()
probs
1 1.0
2 0.8
3 0.4
5 0.2
from empiricaldist import Cdf

Cdf.from_seq(t).make_tail()
probs
1 1.0
2 0.8
3 0.4
5 0.2
surv.make_tail()
probs
1 1.0
2 0.8
3 0.4
5 0.2

Properties#

In a TailDist the index contains the quantities (qs) and the values contain the tail probabilities (ps).

tail.qs

array([1, 2, 3, 5])

tail.ps

array([1. , 0.8, 0.4, 0.2])

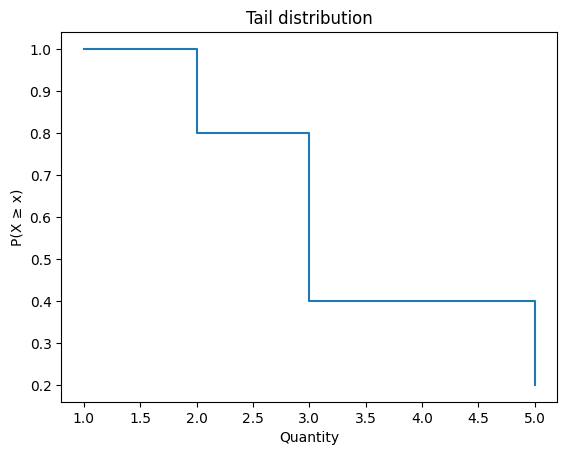

Displaying tail distributions#

TailDist provides plot and step, which draw the tail as a line or step function.

def decorate_tail(title):
    """Labels the axes.

    title: string
    """
    plt.xlabel('Quantity')
    plt.ylabel('P(X ≥ x)')
    plt.title(title)

tail.step()
decorate_tail('Tail distribution')
_images/52e6ec0598d06e08354d35bb03d56e3f493dcd782e995951d34fc99babe2c440.png

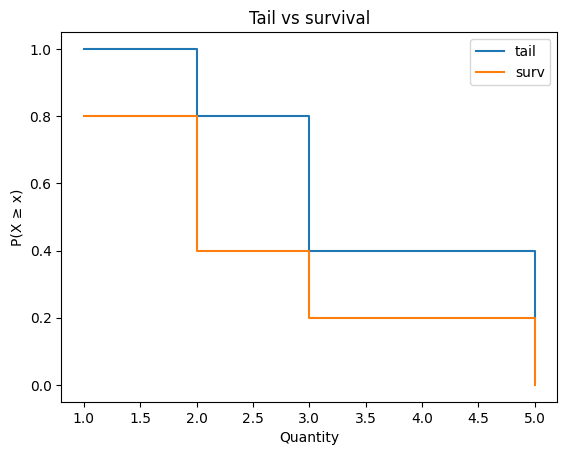

Compare the tail with the survival function on the same axes:

tail.step(label='tail')
surv.step(label='surv')
decorate_tail('Tail vs survival')
plt.legend();
_images/e7f47b1f0bedf7fd0a9dceab3f00b3407d73e7e8d5f1dcc1e536c15de8606ef9.png

Evaluating tail distributions#

Evaluating a TailDist forward maps from a quantity to P(X ≥ x).

tail(1)

array(1.)

tail(2)

array(0.8)

tail(3.5)

array(0.4)

__call__ is a synonym for forward, so you can call a TailDist like a function.

tail(5)

array(0.2)

inverse maps from a tail probability to a quantity:

tail.inverse(1)

array(1.)

tail.inverse(0.8)

array(2.)

tail.inverse(0.2)

array(5.)

quantile is a synonym for inverse.

tail.quantile(0.4)

array(3.)

Converting to other representations#

TailDist provides the same conversion methods as the other distribution classes.

Surv#

make_surv converts a tail distribution to a survival function using

surv[i] = tail[i + 1]

with surv[-1] = 0.

psource(TailDist.make_surv)

    def make_surv(self, **kwargs):
        """Make a Surv from the TailDist.

        If tail[i] = P(X >= q_i), then

            surv[i] = P(X > q_i) = P(X >= q_{i+1})

        with surv[-1] = 0.
        """
        normalize = kwargs.pop("normalize", False)

        tail = self.sort_index()
        ps = np.append(tail.ps[1:], 0)

        surv = Surv(ps, index=tail.index.copy(), **kwargs)
        surv.attrs["total"] = self.attrs.get("total", tail.ps[0])

        if normalize:
            surv.normalize()

        return surv

surv2 = tail.make_surv()
surv2
probs
1 0.8
2 0.4
3 0.2
5 0.0

The result matches Surv.from_seq:

np.allclose(surv2.ps, surv.ps)

True

Pmf#

make_pmf recovers the PMF by differencing adjacent tail probabilities.

psource(TailDist.make_pmf)

    def make_pmf(self, **kwargs):
        """Make a Pmf from the TailDist."""
        normalize = kwargs.pop("normalize", False)
        tail = self.sort_index()
        ps = -np.diff(np.append(tail.ps, 0))
        pmf = Pmf(ps, index=tail.index.copy(), **kwargs)
        if normalize:
            pmf.normalize()
        return pmf

pmf2 = tail.make_pmf()
pmf2
probs
1 0.2
2 0.4
3 0.2
5 0.2
np.allclose(pmf2.ps, pmf.ps)

True

Cdf#

make_cdf goes through the PMF.

from empiricaldist import Cdf

cdf = Cdf.from_seq(t)
cdf2 = tail.make_cdf()
np.allclose(cdf2.ps, cdf.ps)

True

Round-trip conversions preserve the distribution:

tail3 = pmf.make_tail()
np.allclose(tail3.ps, tail.ps)

True

pmf3 = tail.make_surv().make_pmf()
np.allclose(pmf3.ps, pmf.ps)

True

Normalize#

normalize divides through by the total tail mass at the leftmost support point.

psource(TailDist.normalize)

    def normalize(self):
        """Normalize the tail distribution (modifies self).

        Returns: normalizing constant
        """
        old_total = self.attrs.get("total", self.ps[0])
        self /= old_total
        self.attrs["total"] = 1.0
        return old_total

tail = TailDist.from_seq(t, normalize=False)
tail
probs
1 5
2 4
3 2
5 1
total = tail.normalize()
total

5

tail
probs
1 1.0
2 0.8
3 0.4
5 0.2

Copyright 2019 Allen Downey

BSD 3-clause license: https://opensource.org/licenses/BSD-3-Clause
