# Transformation and Selection¶

This is the fourth in a series of notebooks related to astronomy data.

As a running example, we are replicating parts of the analysis in a recent paper, “Off the beaten path: Gaia reveals GD-1 stars outside of the main stream” by Adrian M. Price-Whelan and Ana Bonaca.

In the first lesson, we wrote ADQL queries and used them to select and download data from the Gaia server.

In the second lesson, we write a query to select stars from the region of the sky where we expect GD-1 to be, and save the results in a FITS file.

In the third lesson, we read that data back and identified stars with the proper motion we expect for GD-1.

## Outline¶

Here are the steps in this lesson:

1. Using data from the previous lesson, we’ll identify the values of proper motion for stars likely to be in GD-1.

2. Then we’ll compose an ADQL query that selects stars based on proper motion, so we can download only the data we need.

3. We’ll also see how to write the results to a CSV file.

That will make it possible to search a bigger region of the sky in a single query.

After completing this lesson, you should be able to

• Transform proper motions from one frame to another.

• Compute the convex hull of a set of points.

• Write an ADQL query that selects based on proper motion.

• Save data in CSV format.

## Reload the data¶

The following cells download the data from the previous lesson, if necessary, and load it into a Pandas DataFrame.

import os

filename = 'gd1_dataframe.hdf5'
path = 'https://github.com/AllenDowney/AstronomicalData/raw/main/data/'

if not os.path.exists(filename):

import pandas as pd

centerline_df = pd.read_hdf(filename, 'centerline_df')
selected_df = pd.read_hdf(filename, 'selected_df')


## Selection by proper motion¶

Let’s review how we got to this point.

1. We made an ADQL query to the Gaia server to get data for stars in the vicinity of GD-1.

2. We transformed the coordinates to the GD1Koposov10 frame so we could select stars along the centerline of GD-1.

3. We plotted the proper motion of the centerline stars to identify the bounds of the overdense region.

4. We made a mask that selects stars whose proper motion is in the overdense region.

At this point we have downloaded data for a relatively large number of stars (more than 100,000) and selected a relatively small number (around 1000).

It would be more efficient to use ADQL to select only the stars we need. That would also make it possible to download data covering a larger region of the sky.

However, the selection we did was based on proper motion in the GD1Koposov10 frame. In order to do the same selection in ADQL, we have to work with proper motions in ICRS.

As a reminder, here’s the rectangle we selected based on proper motion in the GD1Koposov10 frame.

pm1_min = -8.9
pm1_max = -6.9
pm2_min = -2.2
pm2_max =  1.0

def make_rectangle(x1, x2, y1, y2):
"""Return the corners of a rectangle."""
xs = [x1, x1, x2, x2, x1]
ys = [y1, y2, y2, y1, y1]
return xs, ys

pm1_rect, pm2_rect = make_rectangle(
pm1_min, pm1_max, pm2_min, pm2_max)

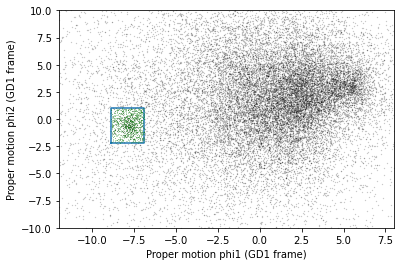

The following figure shows:

• Proper motion for the stars we selected along the center line of GD-1,

• The rectangle we selected, and

• The stars inside the rectangle highlighted in green.

import matplotlib.pyplot as plt

pm1 = centerline_df['pm_phi1']
pm2 = centerline_df['pm_phi2']
plt.plot(pm1, pm2, 'ko', markersize=0.3, alpha=0.3)

pm1 = selected_df['pm_phi1']
pm2 = selected_df['pm_phi2']
plt.plot(pm1, pm2, 'gx', markersize=0.3, alpha=0.3)

plt.plot(pm1_rect, pm2_rect, '-')

plt.xlabel('Proper motion phi1 (GD1 frame)')
plt.ylabel('Proper motion phi2 (GD1 frame)')

plt.xlim(-12, 8)
plt.ylim(-10, 10);


Now we’ll make the same plot using proper motions in the ICRS frame, which are stored in columns pmra and pmdec.

pm1 = centerline_df['pmra']
pm2 = centerline_df['pmdec']
plt.plot(pm1, pm2, 'ko', markersize=0.3, alpha=0.3)

pm1 = selected_df['pmra']
pm2 = selected_df['pmdec']
plt.plot(pm1, pm2, 'gx', markersize=1, alpha=0.3)

plt.xlabel('Proper motion ra (ICRS frame)')
plt.ylabel('Proper motion dec (ICRS frame)')

plt.xlim([-10, 5])
plt.ylim([-20, 5]);


The proper motions of the selected stars are more spread out in this frame, which is why it was preferable to do the selection in the GD-1 frame.

But now we can define a polygon that encloses the proper motions of these stars in ICRS, and use that polygon as a selection criterion in an ADQL query.

## Convex Hull¶

SciPy provides a function that computes the convex hull of a set of points, which is the smallest convex polygon that contains all of the points.

To use it, we’ll select columns pmra and pmdec and convert them to a NumPy array.

import numpy as np

points = selected_df[['pmra','pmdec']].to_numpy()
points.shape

(1049, 2)


NOTE: If you are using an older version of Pandas, you might not have to_numpy(); you can use values instead, like this:

points = selected_df[['pmra','pmdec']].values



We’ll pass the points to ConvexHull, which returns an object that contains the results.

from scipy.spatial import ConvexHull

hull = ConvexHull(points)
hull

<scipy.spatial.qhull.ConvexHull at 0x7fa7c4c03a90>


hull.vertices contains the indices of the points that fall on the perimeter of the hull.

hull.vertices

array([ 692,  873,  141,  303,   42,  622,   45,   83,  127,  182, 1006,
971,  967, 1001,  969,  940], dtype=int32)


We can use them as an index into the original array to select the corresponding rows.

pm_vertices = points[hull.vertices]
pm_vertices

array([[ -4.05037121, -14.75623261],
[ -3.41981085, -14.72365546],
[ -3.03521988, -14.44357135],
[ -2.26847919, -13.7140236 ],
[ -2.61172203, -13.24797471],
[ -2.73471401, -13.09054471],
[ -3.19923146, -12.5942653 ],
[ -3.34082546, -12.47611926],
[ -5.67489413, -11.16083338],
[ -5.95159272, -11.10547884],
[ -6.42394023, -11.05981295],
[ -7.09631023, -11.95187806],
[ -7.30641519, -12.24559977],
[ -7.04016696, -12.88580702],
[ -6.00347705, -13.75912098],
[ -4.42442296, -14.74641176]])


To plot the resulting polygon, we have to pull out the x and y coordinates.

pmra_poly, pmdec_poly = np.transpose(pm_vertices)


This use of transpose is a bit of a NumPy trick. Because pm_vertices has two columns, its transpose has two rows, which are assigned to the two variables pmra_poly and pmdec_poly.

The following figure shows proper motion in ICRS again, along with the convex hull we just computed.

pm1 = centerline_df['pmra']
pm2 = centerline_df['pmdec']
plt.plot(pm1, pm2, 'ko', markersize=0.3, alpha=0.3)

pm1 = selected_df['pmra']
pm2 = selected_df['pmdec']
plt.plot(pm1, pm2, 'gx', markersize=0.3, alpha=0.3)

plt.plot(pmra_poly, pmdec_poly)

plt.xlabel('Proper motion phi1 (ICRS frame)')
plt.ylabel('Proper motion phi2 (ICRS frame)')

plt.xlim([-10, 5])
plt.ylim([-20, 5]);


So pm_vertices represents the polygon we want to select. The next step is to use it as part of an ADQL query.

## Assembling the query¶

Here’s the base string we used for the query in the previous lesson.

query_base = """SELECT
{columns}
WHERE parallax < 1
AND bp_rp BETWEEN -0.75 AND 2
AND 1 = CONTAINS(POINT(ra, dec),
POLYGON({point_list}))
"""


And here are the changes we’ll make in this lesson:

1. We will add another clause to select stars whose proper motion is in the polygon we just computed, pm_vertices.

2. We will select stars with coordinates in a larger region.

To use pm_vertices as part of an ADQL query, we have to convert it to a string. Using flatten and array2string, we can almost get the format we need.

s = np.array2string(pm_vertices.flatten(),
max_line_width=1000,
separator=',')
s

'[ -4.05037121,-14.75623261, -3.41981085,-14.72365546, -3.03521988,-14.44357135, -2.26847919,-13.7140236 , -2.61172203,-13.24797471, -2.73471401,-13.09054471, -3.19923146,-12.5942653 , -3.34082546,-12.47611926, -5.67489413,-11.16083338, -5.95159272,-11.10547884, -6.42394023,-11.05981295, -7.09631023,-11.95187806, -7.30641519,-12.24559977, -7.04016696,-12.88580702, -6.00347705,-13.75912098, -4.42442296,-14.74641176]'


We just have to remove the brackets.

pm_point_list = s.strip('[]')
pm_point_list

' -4.05037121,-14.75623261, -3.41981085,-14.72365546, -3.03521988,-14.44357135, -2.26847919,-13.7140236 , -2.61172203,-13.24797471, -2.73471401,-13.09054471, -3.19923146,-12.5942653 , -3.34082546,-12.47611926, -5.67489413,-11.16083338, -5.95159272,-11.10547884, -6.42394023,-11.05981295, -7.09631023,-11.95187806, -7.30641519,-12.24559977, -7.04016696,-12.88580702, -6.00347705,-13.75912098, -4.42442296,-14.74641176'


We’ll add this string to the query soon, but first let’s compute the other polygon, the one that specifies the region of the sky we want.

Here are the coordinates of the rectangle we’ll select, in the GD-1 frame.

import astropy.units as u

phi1_min = -70 * u.degree
phi1_max = -20 * u.degree
phi2_min = -5 * u.degree
phi2_max = 5 * u.degree

phi1_rect, phi2_rect = make_rectangle(
phi1_min, phi1_max, phi2_min, phi2_max)


Here’s how we transform it to ICRS, as we saw in the previous lesson.

from gala.coordinates import GD1Koposov10
from astropy.coordinates import SkyCoord

corners = SkyCoord(phi1=phi1_rect,
phi2=phi2_rect,
frame=GD1Koposov10)

corners_icrs = corners.transform_to('icrs')


To use corners_icrs as part of an ADQL query, we have to convert it to a string. Here’s how we do that, as we saw in the previous lesson.

def skycoord_to_string(skycoord):
"""Convert SkyCoord to string."""
t = skycoord.to_string()
s = ' '.join(t)
return s.replace(' ', ', ')

point_list = skycoord_to_string(corners_icrs)
point_list

'135.306, 8.39862, 126.51, 13.4449, 163.017, 54.2424, 172.933, 46.4726, 135.306, 8.39862'


Now we have everything we need to assemble the query. Here’s the base query from the previous lesson again:

query_base = """SELECT
{columns}
WHERE parallax < 1
AND bp_rp BETWEEN -0.75 AND 2
AND 1 = CONTAINS(POINT(ra, dec),
POLYGON({point_list}))
"""


### Exercise¶

Modify query_base by adding a new clause to select stars whose coordinates of proper motion, pmra and pmdec, fall within the polygon defined by pm_point_list.

# Solution

query_base = """SELECT
{columns}
WHERE parallax < 1
AND bp_rp BETWEEN -0.75 AND 2
AND 1 = CONTAINS(POINT(ra, dec),
POLYGON({point_list}))
AND 1 = CONTAINS(POINT(pmra, pmdec),
POLYGON({pm_point_list}))
"""


Here again are the columns we want to select.

columns = 'source_id, ra, dec, pmra, pmdec, parallax, radial_velocity'


### Exercise¶

Use format to format query_base and define query, filling in the values of columns, point_list, and pm_point_list.

# Solution

query = query_base.format(columns=columns,
point_list=point_list,
pm_point_list=pm_point_list)
print(query)

SELECT
source_id, ra, dec, pmra, pmdec, parallax, radial_velocity
WHERE parallax < 1
AND bp_rp BETWEEN -0.75 AND 2
AND 1 = CONTAINS(POINT(ra, dec),
POLYGON(135.306, 8.39862, 126.51, 13.4449, 163.017, 54.2424, 172.933, 46.4726, 135.306, 8.39862))
AND 1 = CONTAINS(POINT(pmra, pmdec),
POLYGON( -4.05037121,-14.75623261, -3.41981085,-14.72365546, -3.03521988,-14.44357135, -2.26847919,-13.7140236 , -2.61172203,-13.24797471, -2.73471401,-13.09054471, -3.19923146,-12.5942653 , -3.34082546,-12.47611926, -5.67489413,-11.16083338, -5.95159272,-11.10547884, -6.42394023,-11.05981295, -7.09631023,-11.95187806, -7.30641519,-12.24559977, -7.04016696,-12.88580702, -6.00347705,-13.75912098, -4.42442296,-14.74641176))


Now we can run the query like this:

from astroquery.gaia import Gaia

job = Gaia.launch_job_async(query)
print(job)

INFO: Query finished. [astroquery.utils.tap.core]
<Table length=7345>
name       dtype    unit                              description                             n_bad
--------------- ------- -------- ------------------------------------------------------------------ -----
source_id   int64          Unique source identifier (unique within a particular Data Release)     0
ra float64      deg                                                    Right ascension     0
dec float64      deg                                                        Declination     0
pmra float64 mas / yr                         Proper motion in right ascension direction     0
pmdec float64 mas / yr                             Proper motion in declination direction     0
parallax float64      mas                                                           Parallax     0
radial_velocity float64   km / s                                                    Radial velocity  7294
Jobid: 1609278364817O
Phase: COMPLETED
Owner: None
Output file: async_20201229164604.vot
Results: None


And get the results.

candidate_table = job.get_results()
len(candidate_table)

7345


## Plotting one more time¶

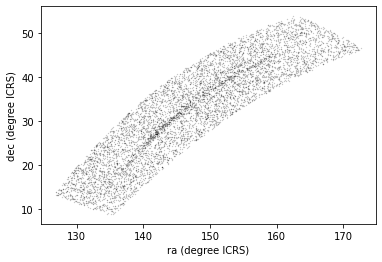

Let’s see what the results look like.

x = candidate_table['ra']
y = candidate_table['dec']
plt.plot(x, y, 'ko', markersize=0.3, alpha=0.3)

plt.xlabel('ra (degree ICRS)')
plt.ylabel('dec (degree ICRS)');


Here we can see why it was useful to transform these coordinates. In ICRS, it is more difficult to identity the stars near the centerline of GD-1.

So, before we move on to the next step, let’s collect the code we used to transform the coordinates and make a Pandas DataFrame:

from gala.coordinates import reflex_correct

def make_dataframe(table):
"""Transform coordinates from ICRS to GD-1 frame.

table: Astropy Table

returns: Pandas DataFrame
"""
skycoord = SkyCoord(
ra=table['ra'],
dec=table['dec'],
pm_ra_cosdec=table['pmra'],
pm_dec=table['pmdec'],
distance=8*u.kpc,

transformed = skycoord.transform_to(GD1Koposov10)
gd1_coord = reflex_correct(transformed)

df = table.to_pandas()
df['phi1'] = gd1_coord.phi1
df['phi2'] = gd1_coord.phi2
df['pm_phi1'] = gd1_coord.pm_phi1_cosphi2
df['pm_phi2'] = gd1_coord.pm_phi2
return df


Here’s how we can use this function:

candidate_df = make_dataframe(candidate_table)


And let’s see the results.

x = candidate_df['phi1']
y = candidate_df['phi2']

plt.plot(x, y, 'ko', markersize=0.5, alpha=0.5)

plt.xlabel('ra (degree GD1)')
plt.ylabel('dec (degree GD1)');


We’re starting to see GD-1 more clearly.

We can compare this figure with one of these panels in Figure 1 from the original paper:

The top panel shows stars selected based on proper motion only, so it is comparable to our figure (although notice that it covers a wider region).

In the next lesson, we will use photometry data from Pan-STARRS to do a second round of filtering, and see if we can replicate the bottom panel.

We’ll also learn how to add annotations like the ones in the figure from the paper, and customize the style of the figure to present the results clearly and compellingly.

## Saving the DataFrame¶

Let’s save this DataFrame so we can pick up where we left off without running this query again.

filename = 'gd1_candidates.hdf5'

candidate_df.to_hdf(filename, 'candidate_df', mode='w')


We can use ls to confirm that the file exists and check the size:

!ls -lh gd1_candidates.hdf5

-rw-rw-r-- 1 downey downey 698K Dec 29 16:46 gd1_candidates.hdf5


If you are using Windows, ls might not work; in that case, try:

!dir gd1_candidates.hdf5


## CSV¶

Pandas can write a variety of other formats, which you can read about here.

We won’t cover all of them, but one other important one is CSV, which stands for “comma-separated values”.

CSV is a plain-text format with minimal formatting requirements, so it can be read and written by pretty much any tool that works with data. In that sense, it is the “least common denominator” of data formats.

However, it has an important limitation: some information about the data gets lost in translation, notably the data types. If you read a CSV file from someone else, you might need some additional information to make sure you are getting it right.

Also, CSV files tend to be big, and slow to read and write.

With those caveats, here’s how to write one:

candidate_df.to_csv('gd1_candidates.csv')


We can check the file size like this:

!ls -lh gd1_candidates.csv

-rw-rw-r-- 1 downey downey 1.4M Dec 29 16:46 gd1_candidates.csv


The CSV file about 2 times bigger than the HDF5 file (so that’s not that bad, really).

We can see the first few lines like this:

!head -3 gd1_candidates.csv

,source_id,ra,dec,pmra,pmdec,parallax,radial_velocity,phi1,phi2,pm_phi1,pm_phi2
0,635559124339440000,137.58671691646745,19.1965441084838,-3.770521900009566,-12.490481778113859,0.7913934419894347,,-59.63048941944402,-1.2164852515042963,-7.361362712597496,-0.592632882064492
1,635860218726658176,138.5187065217173,19.09233926905897,-5.941679495793577,-11.346409129876392,0.30745551377348623,,-59.247329893833296,-2.016078400820631,-7.527126084640531,1.7487794924176672


The CSV file contains the names of the columns, but not the data types.

We can read the CSV file back like this:

read_back_csv = pd.read_csv('gd1_candidates.csv')


Let’s compare the first few rows of candidate_df and read_back_csv

candidate_df.head(3)

source_id ra dec pmra pmdec parallax radial_velocity phi1 phi2 pm_phi1 pm_phi2
0 635559124339440000 137.586717 19.196544 -3.770522 -12.490482 0.791393 NaN -59.630489 -1.216485 -7.361363 -0.592633
1 635860218726658176 138.518707 19.092339 -5.941679 -11.346409 0.307456 NaN -59.247330 -2.016078 -7.527126 1.748779
2 635674126383965568 138.842874 19.031798 -3.897001 -12.702780 0.779463 NaN -59.133391 -2.306901 -7.560608 -0.741800
read_back_csv.head(3)

Unnamed: 0 source_id ra dec pmra pmdec parallax radial_velocity phi1 phi2 pm_phi1 pm_phi2
0 0 635559124339440000 137.586717 19.196544 -3.770522 -12.490482 0.791393 NaN -59.630489 -1.216485 -7.361363 -0.592633
1 1 635860218726658176 138.518707 19.092339 -5.941679 -11.346409 0.307456 NaN -59.247330 -2.016078 -7.527126 1.748779
2 2 635674126383965568 138.842874 19.031798 -3.897001 -12.702780 0.779463 NaN -59.133391 -2.306901 -7.560608 -0.741800

Notice that the index in candidate_df has become an unnamed column in read_back_csv. The Pandas functions for writing and reading CSV files provide options to avoid that problem, but this is an example of the kind of thing that can go wrong with CSV files.

## Summary¶

In the previous lesson we downloaded data for a large number of stars and then selected a small fraction of them based on proper motion.

In this lesson, we improved this process by writing a more complex query that uses the database to select stars based on proper motion. This process requires more computation on the Gaia server, but then we’re able to either:

1. Search the same region and download less data, or

2. Search a larger region while still downloading a manageable amount of data.

In the next lesson, we’ll learn about the databased JOIN operation and use it to download photometry data from Pan-STARRS.

## Best practices¶

• When possible, “move the computation to the data”; that is, do as much of the work as possible on the database server before downloading the data.

• For most applications, saving data in FITS or HDF5 is better than CSV. FITS and HDF5 are binary formats, so the files are usually smaller, and they store metadata, so you don’t lose anything when you read the file back.

• On the other hand, CSV is a “least common denominator” format; that is, it can be read by practically any application that works with data.
